eurolaser x ORAFOL: solutions for self-adhesive products
ORAFOL Europe GmbH, Germany
ORAFOL is a globally leading manufacturer of innovative self-adhesive graphic products, reflective materials and industrial adhesive tapes. Headquartered in Oranienburg, ORAFOL sets the highest standards in quality, innovation, service and environmental responsibility. As a dynamic, globally operating company, the ORAFOL Group maintains a network of distributors in more than 100 countries worldwide, ensuring close proximity to customers across all time zones.
Further information on the collaboration with eurolaser
eurolaser tested the following ORAFOL materials on its laser cutting machines:

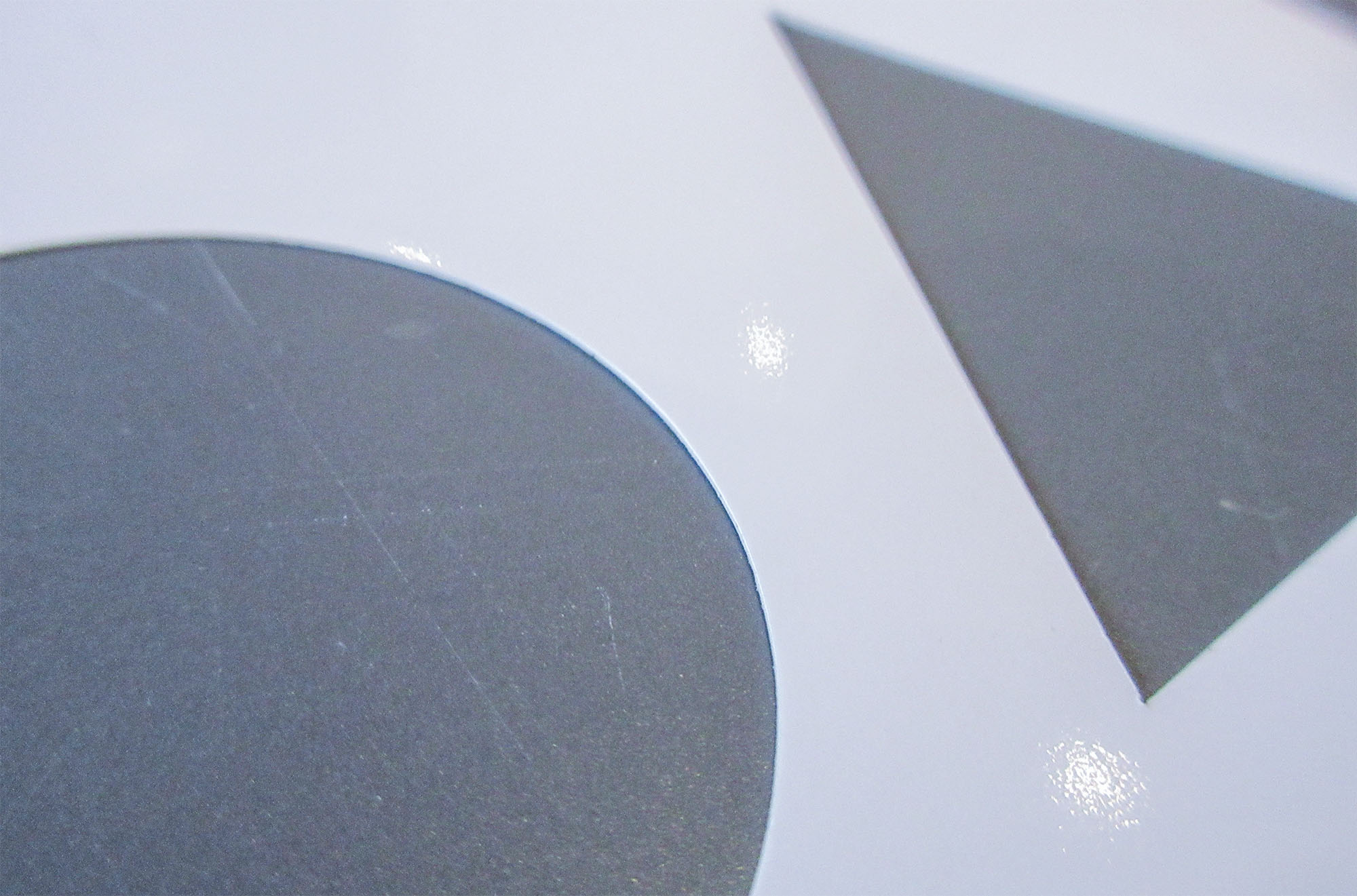

Laser Test: ORAJET®
Laser cutting of digital print films
Material

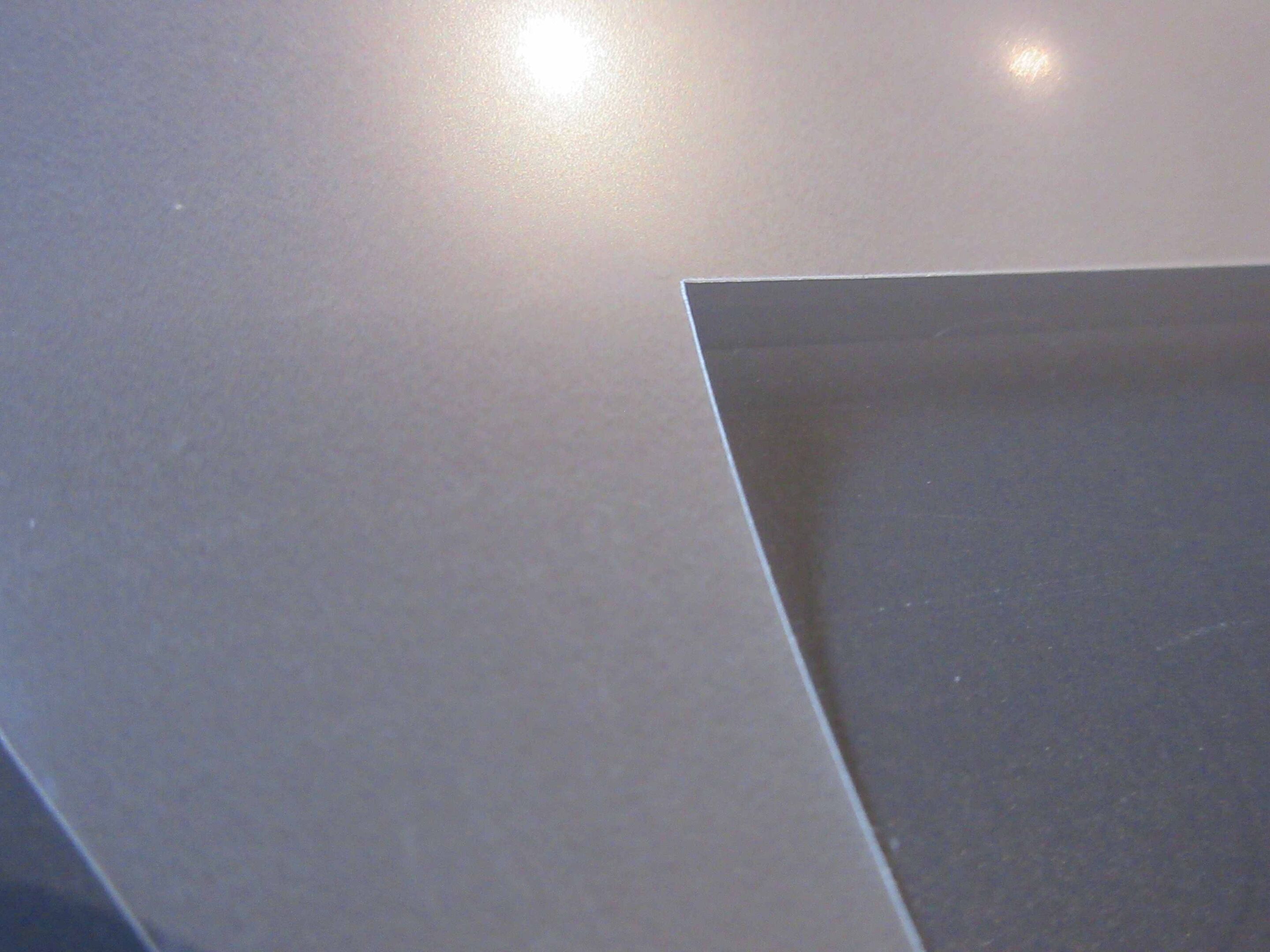

ORAJET® 3172XG-010 is a PVC-free, white gloss polypropylene film with a grey removable polyacrylate adhesive – ideal for indoor and short-term outdoor applications. It complies with the EN 71-3:2013 toy safety standard. ORAJET® 3352F-000 is an ultra-clear polyester film with a glossy, lacquer-coated surface, specially designed for glass surfaces and suitable for wet application.
Test setup

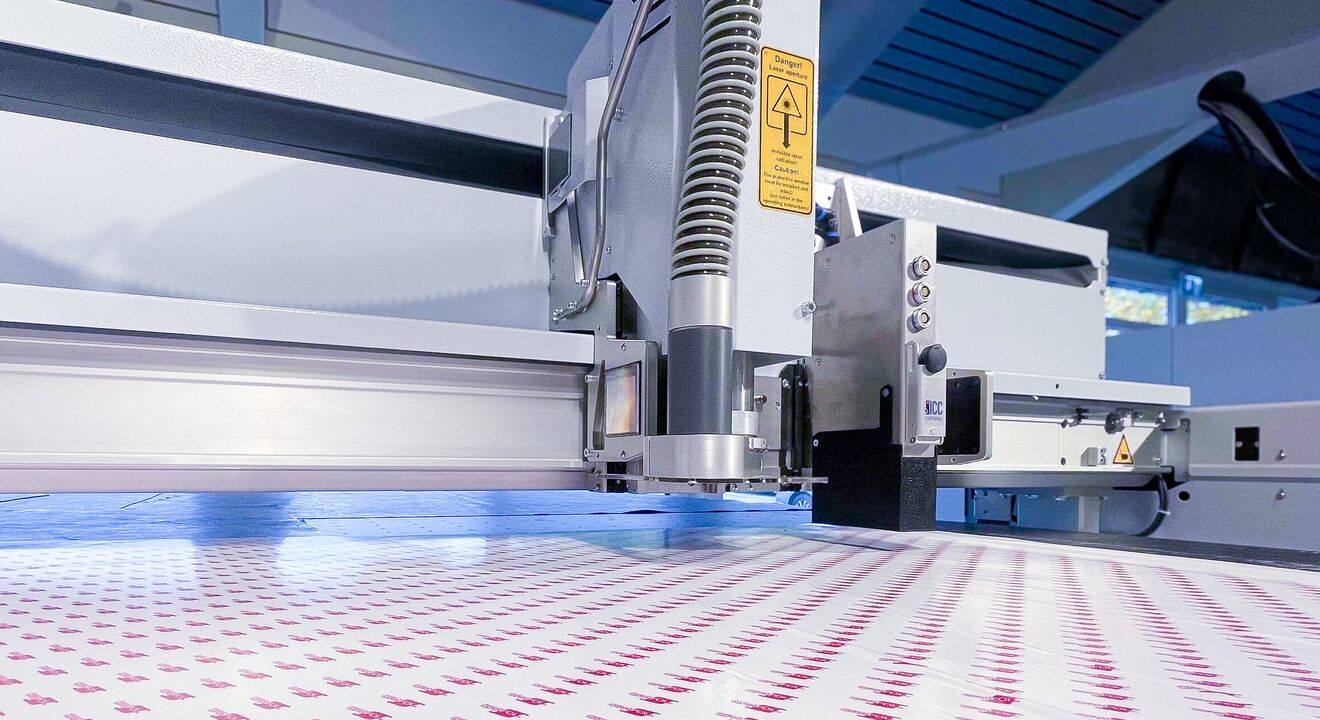

To evaluate the laser cutting capability of the films, eurolaser tested two different high-performance films from ORAFOL in its in-house application laboratory. The tests were carried out on our XL-1600 laser cutting machine with 60 W CO₂ laser power.
Result

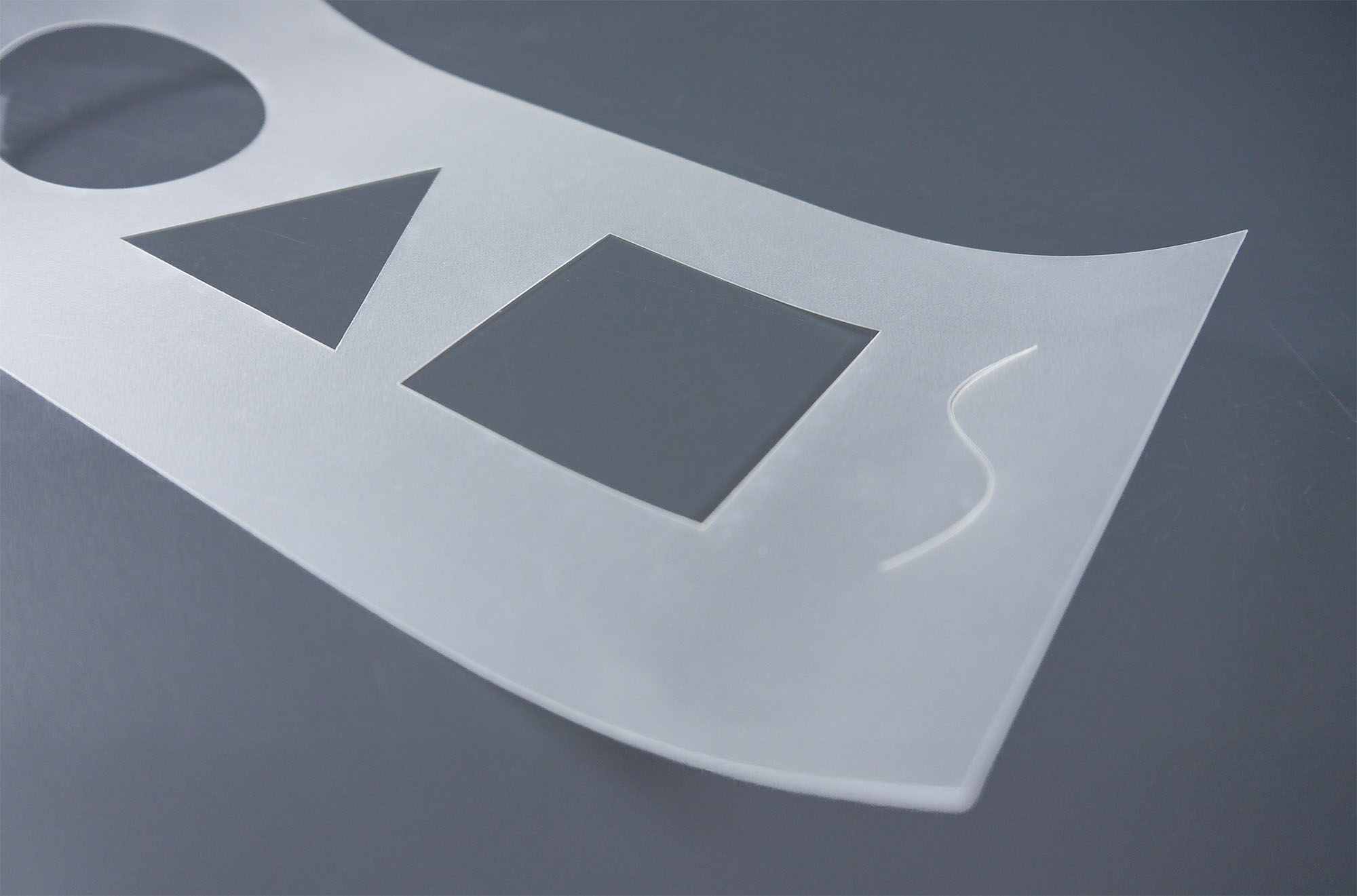

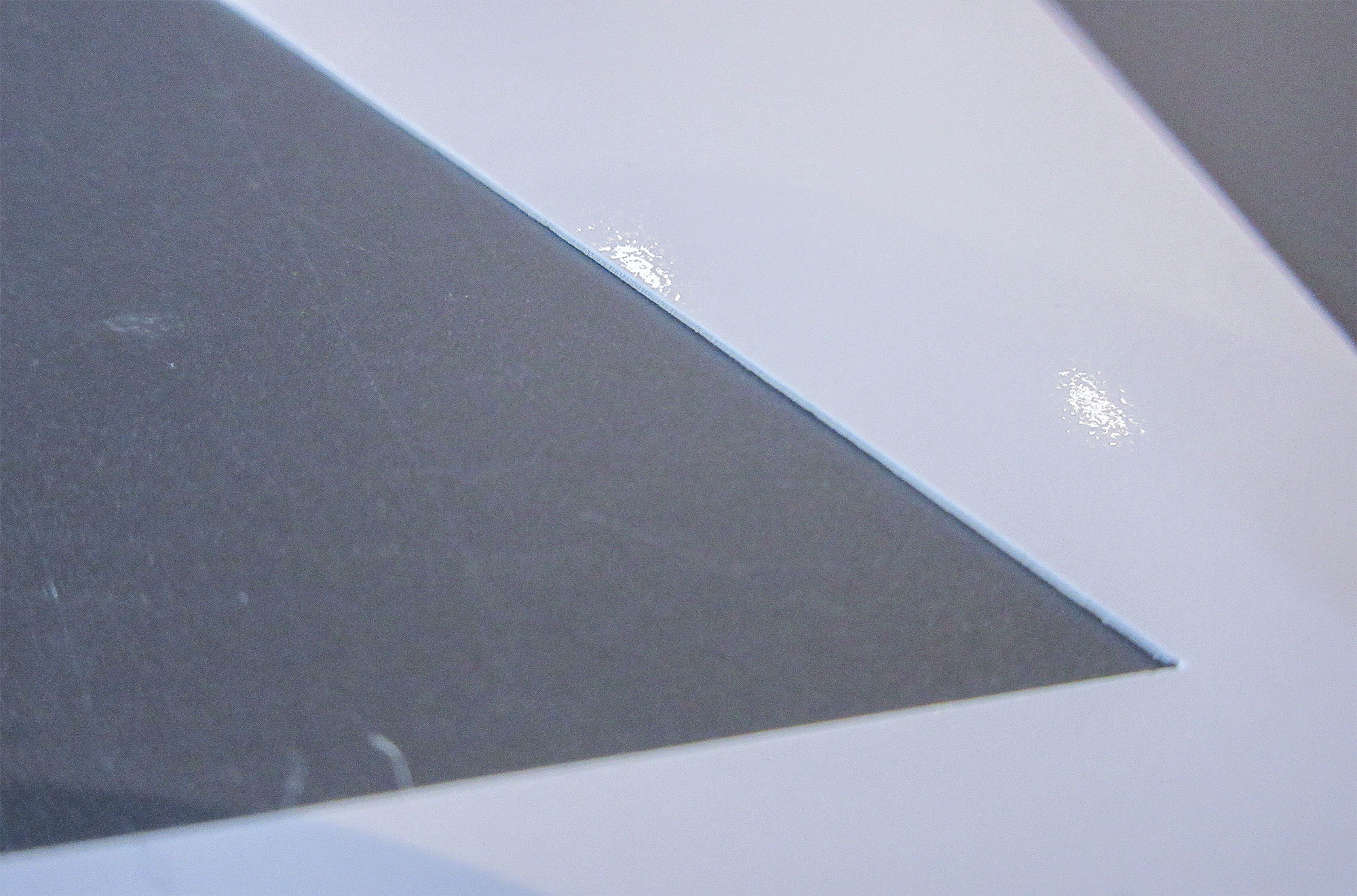

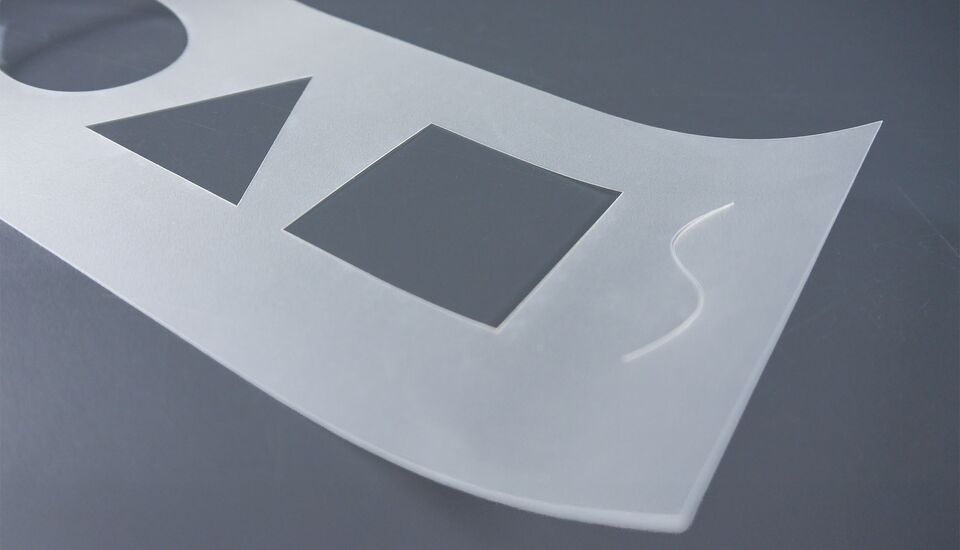

The tested ORAFOL films were cut optimally with 60 W CO₂ laser power. All variants demonstrated clean cutting edges and consistently high quality – even with tight radii and intricate details. Thanks to contactless processing, no blade cleaning or adhesion of cut parts was required. A detailed test report is available on request.
Advantages
Maximum precision
No tool wear for low production costs
Contactless technology for distortion-free cutting
High flexibility in contour selection
Clean and perfect cutting edges without reworking
Laser test certificates
excellently suitable

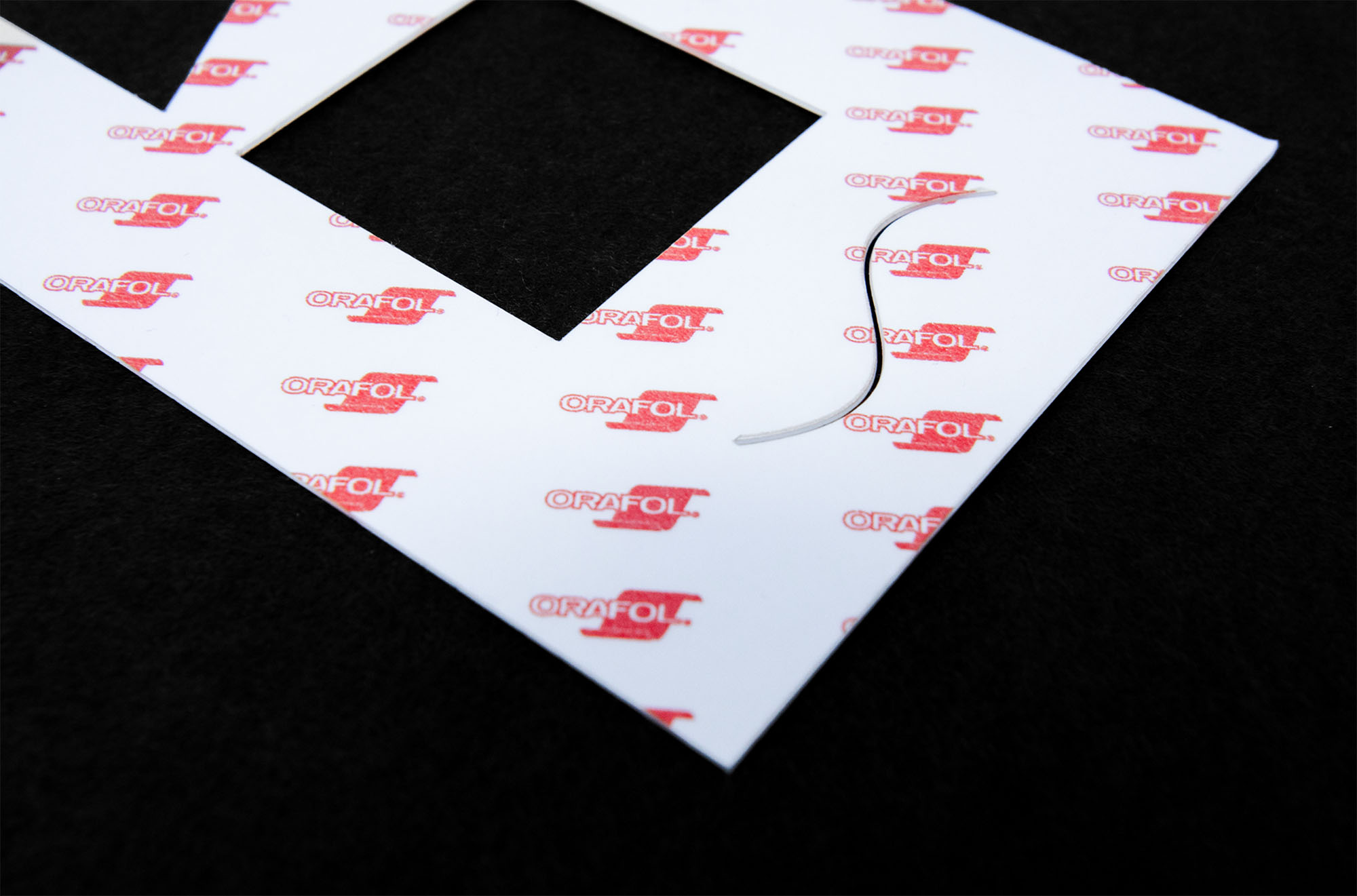

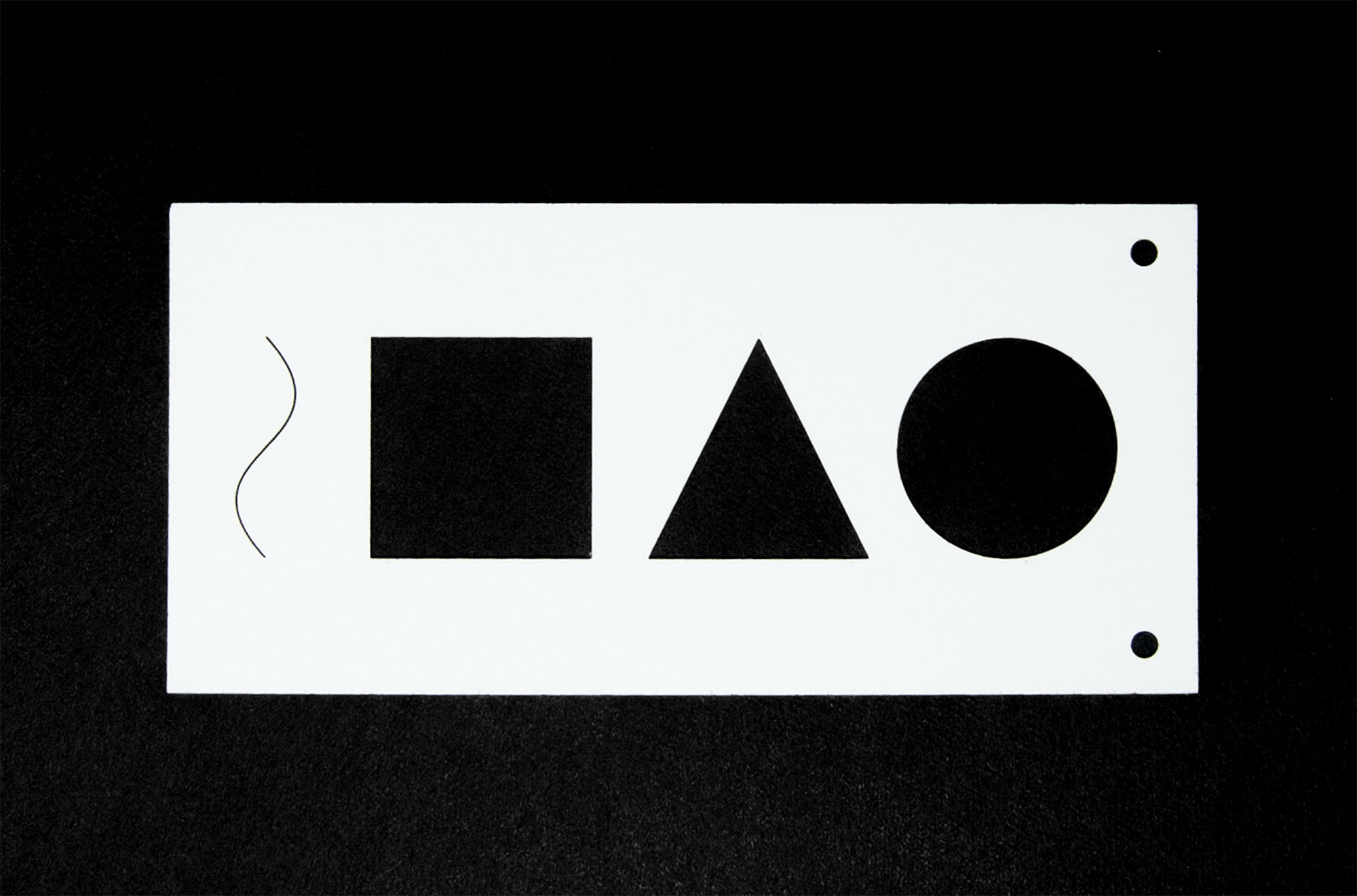

Laser Test: ORABOND® UHB3050T
Laser cutting of high-performance adhesive tapes
Material
ORABOND® UHB3050T is a high-performance adhesive tape with an extremely durable acrylate adhesive that bonds reliably even at high temperatures and under mechanical stress. The result is very strong adhesive strength for permanent, invisible bonds. Excellently suitable for applications in the solar industry, for glass and plastic bonding, partition walls, doors and safety glass – wherever transparency and high adhesive performance are required.
Test setup
For the material test, ORABOND® was processed using a CO₂ laser at 400 W on an XL-1600 processing area. Cutting was carried out contactlessly. Due to the adhesive properties of the material, the use of laser technology was particularly advantageous, as there was no tool contact and therefore no contamination from adhesive residues. The objective of the test was precise, residue-free cutting with high repeat accuracy.
Result

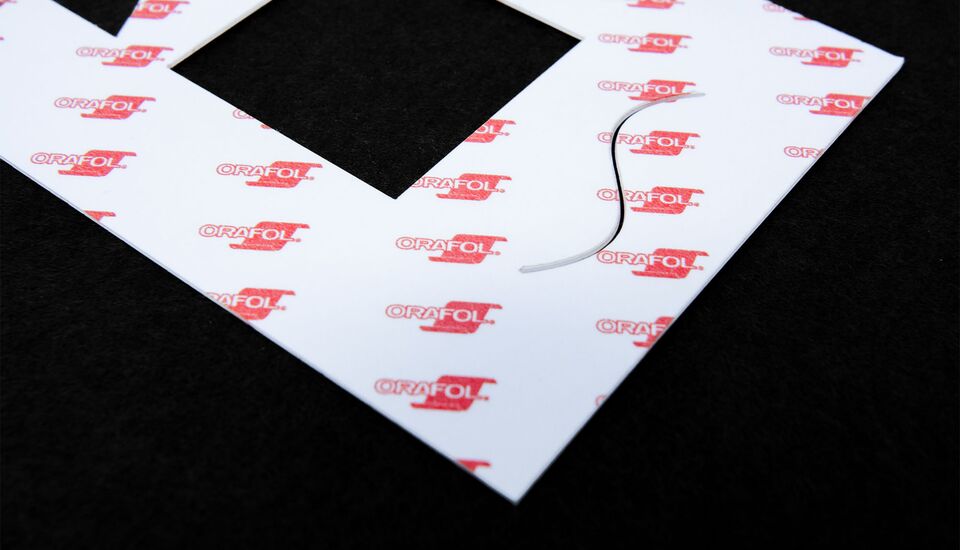

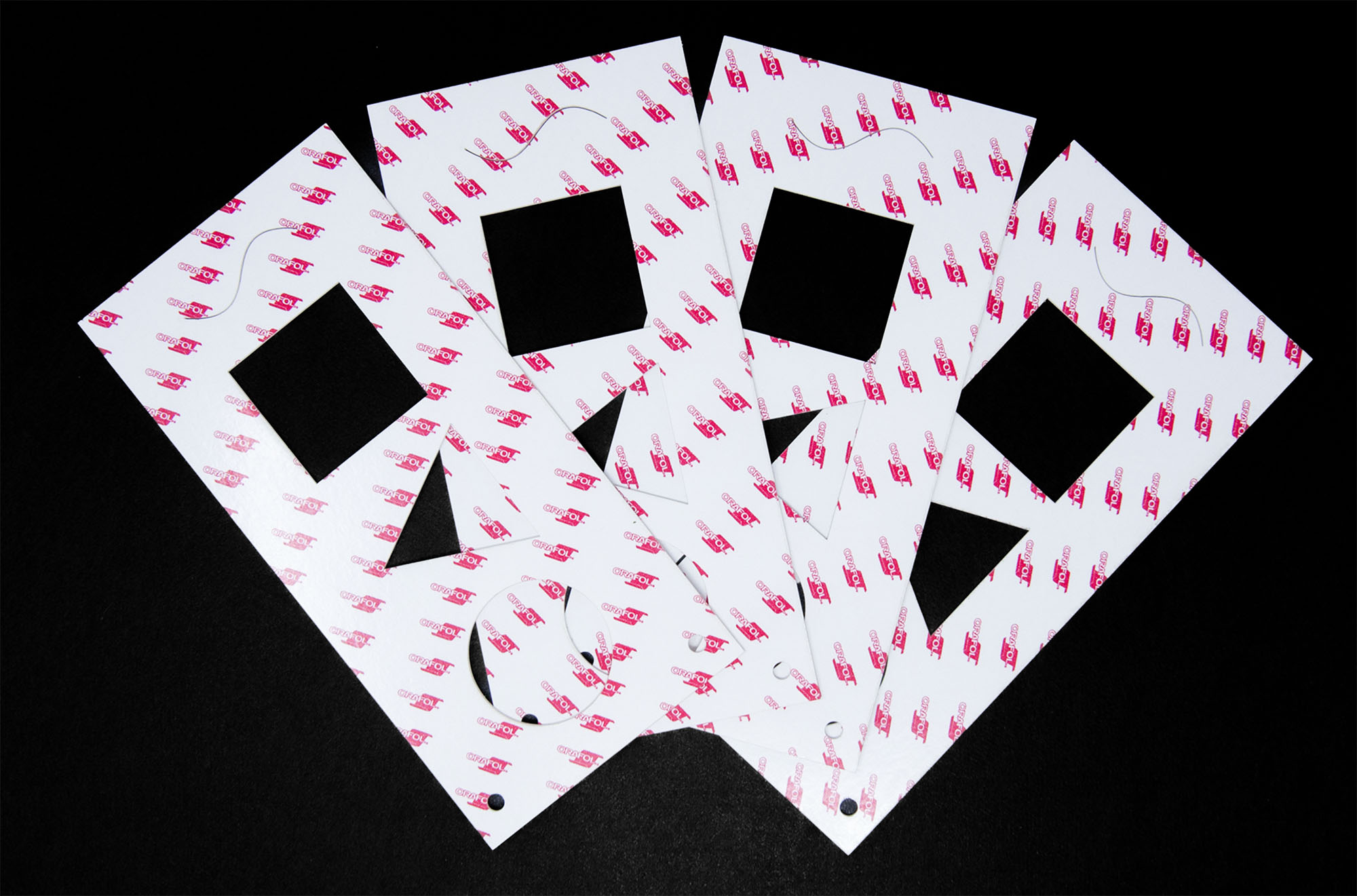

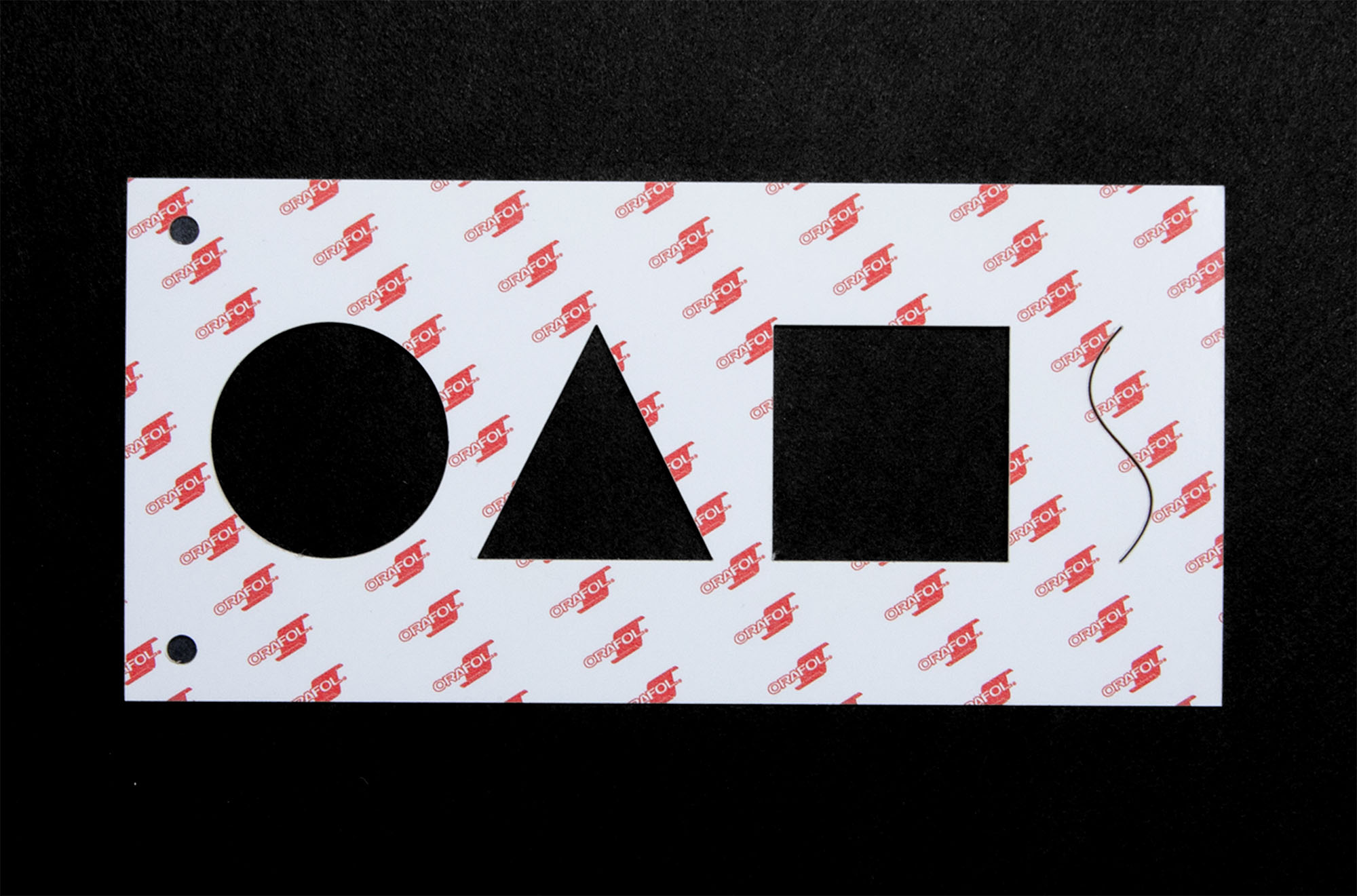

Laser cutting of ORABOND® with the CO₂ laser resulted in exact, clean cutting edges without adhesion or material distortion. Cutting quality remained consistently high throughout the entire process. Even tight radii and intricate contours were implemented precisely. Thanks to contactless processing, adhesive residues on tools were avoided – ideal for serial production.
Advantages
No sticking or contamination of tools
Consistently high cutting quality without tool wear
Maximum precision for repeat parts
Exact contours, even with tight radii
Contactless cutting without material distortion
Laser test certificates
excellently suitable
